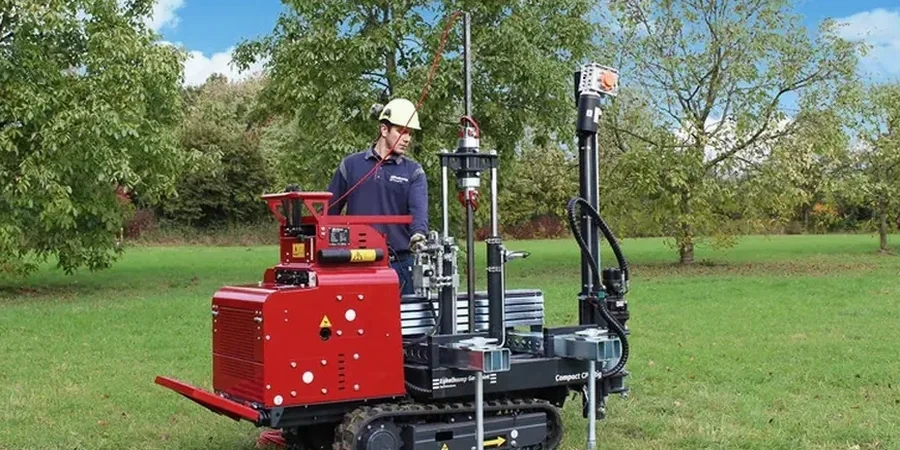

IBC Chapter 18 and the local Des Moines Municipal Code require accurate subsurface data before any structure goes vertical. The Cone Penetration Test (CPT) is often the fastest way to get that data in the variable alluvial soils that blanket much of Des Moines. Our lab runs a tracked CPT rig that pushes a calibrated cone into the ground, recording tip resistance, sleeve friction, and pore pressure in real time. The resulting profile reveals exactly where loose sands transition into stiff glacial till, a boundary that matters a lot for deep foundations near the Des Moines River. Builders in downtown Des Moines rely on CPT data to avoid surprises during excavation. The test produces no cuttings, minimal disturbance, and a continuous log that conventional borings simply cannot match. When the project schedule demands speed, CPT in Des Moines delivers actionable results within days.
A single CPT sounding replaces a dozen split-spoon samples and gives you a continuous log with zero data gaps between the surface and refusal depth.
How we work
Des Moines sits at an elevation of about 955 feet, perched on a sequence of Wisconsin-age glacial deposits overlying Pennsylvanian bedrock. That geological stack means soil behavior can shift dramatically within a single city block. CPT testing captures those transitions with centimeter-scale resolution, mapping clay seams, sand lenses, and soft zones that a standard split-spoon sample would miss. Our cone rig applies the ASTM D5778 standard, pushing at a constant 2 cm/s rate while sensors log data continuously. For sites near the Raccoon River floodplain, the pore pressure dissipation test gives direct permeability estimates without needing a separate well installation. When we need to correlate CPT tip resistance to standard penetration resistance, we reference the local calibration data and often pair the profile with
SPT drilling to validate soil classification at key depths. In silty zones where drainage matters for pavement performance, we complement the cone data with
laboratory grain-size analysis to refine the Unified Soil Classification. For shallow foundation design on the stiff clays common in West Des Moines, the continuous profile from CPT feeds directly into bearing capacity calculations without the gaps inherent in interval sampling.
Local considerations
Des Moines grew rapidly after the Civil War, with the first permanent bridge across the Des Moines River built in 1856 and the state capitol completed in 1886. Much of the early downtown was constructed on fill and reworked alluvium that was never engineered to modern standards. Today, that legacy means unknown fill thicknesses, buried organic layers, and variable density profiles that can confound conventional exploration. CPT testing cuts through the uncertainty by providing a direct measurement of in-situ soil behavior without the disturbance that sampling introduces in these sensitive materials. On a recent project near the East Village, cone data revealed a 4-foot layer of loose hydraulic fill at 12 feet depth that a standard boring log had completely averaged into the surrounding stratum. That discovery changed the pile tip elevation and saved the owner from a costly settlement problem. In flood-prone sections of Des Moines, CPT pore pressure data also helps identify perched water tables that complicate dewatering during excavation.
